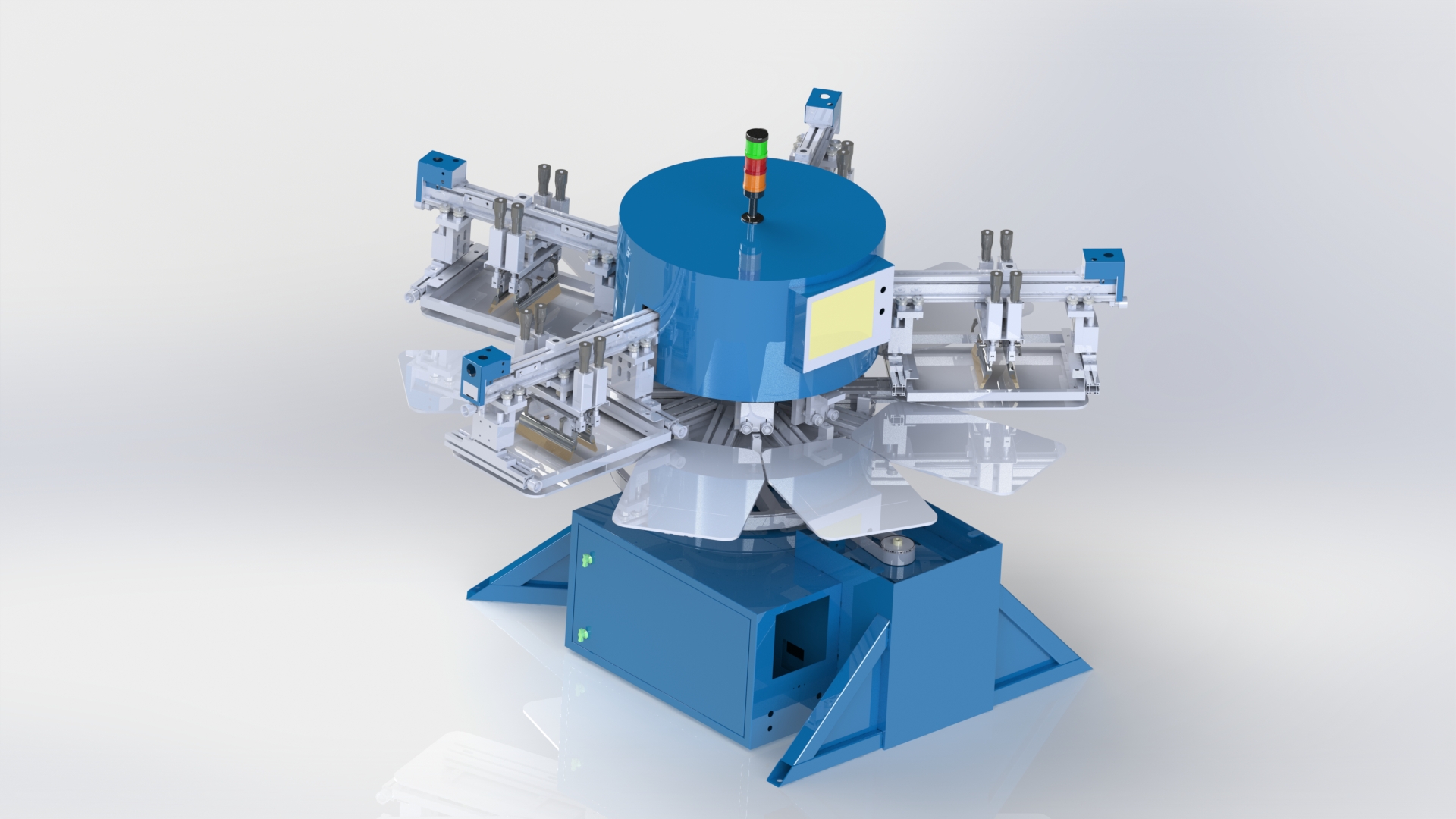

Octopus Screen Printing Machine
Octopus Screen Printing Machine
Descriptions
Can print in 40 x40 area.
Up to four colors can be configured.
It has servo mechanism.
Flash cure unit can be added.
Teknik Özellikler / Technical Spesifictions
Palet Sayısı | 10 | Pallets | 10 |
Baskı Kafası | 1/4 | Printhead | 1/4 |
Baskı Alanı | 40 cm x 40 cm | Print Area | 40 cm x 40 cm |
Makina Çapı | 230 cm | Machine Diameter | 230 cm |
Yükseklik | 170 cm | Height | 170 cm |
Hava Sarfiyatı | 500 lt / dk | Air Consumption | 500 lt/min |
Hava Çalışma Basıncı | 6 bar | Air Working Pressure | 6 bar |
Dönüş Sistemi | servo | Return System | servo |
Elektrik Gücü | 3 kw | Electric power | 3 kw |
Hassasiyet | 0,02 mm | Sensibility | 0,02 mm |
Baskı Kapasitesi | 500 – 800 adet | Print Capacity | 500 – 800 pcs |
Ağırlık | 1000 kg | Weight | 1000 kg |
With our engineer staff and technological facilities, we are actively at your side 24/7 in all processes such as design, simulation, manufacturing, quality, measurement and evaluation.
